Taps & Dies: How Thread-Cutting Tools Work

Every machinist's drawer holds the same odd couple: a tap, threaded and fluted like a tiny screw gone wrong, and a die, a flat hexagonal puck with a hole cut clean through its center. Put them to work and the distinction is total. A tap cuts internal threads — the groove inside a drilled hole that a bolt threads into. A die cuts external threads — the ridge on a rod or blank that becomes a bolt. Between them, they make every threaded fastener that holds old machinery, hardware, and furniture together.

This guide covers how taps and dies work: the three-tap set and when to reach for each, the tap-drill step that must happen before a tap touches metal, the technique that keeps a tap from snapping off, and the thread standards — including Whitworth, which trips up anyone tapping a hole in 19th-century British machinery.

Tap or Die: Which Tool Cuts Which Thread

The Tap Cuts Inside

A tap is a hardened-steel rod, fluted lengthwise to clear shavings and threaded to the exact pitch it's meant to cut. Drop it into a pre-drilled hole and turn it, and it shaves a matching internal thread into the wall — the thread a bolt or machine screw will grip. Every tapped hole in a cast-iron machine base or a Victorian sewing-machine casting started as a plain round hole a tap turned into a fastener socket.

The Die Cuts Outside

A die does the mirror-image job: a flat, usually hexagonal piece of hardened steel with a threaded hole bored through the middle and radial cutting flutes. Fit it over a plain rod or bolt blank and turn it, and it shaves a matching external thread onto the outside of that stock. Tap and die are complements, not variations on one idea, which is why a "tap-and-die set" is really two toolkits sold together.

The Three-Tap Set: Taper, Plug, and Bottoming

Open an old machinist's tap-and-die chest and you'll typically find taps in threes for each thread size — taper, plug, and bottoming. The difference is the chamfer: the tapered, partially-formed threads at the tip that ease the tap into full cutting depth. A longer chamfer starts straighter; a shorter one cuts closer to the bottom of the hole. Which tap a machinist reaches for depends on whether the hole goes all the way through, or dead-ends partway in.

Taper Tap

The taper tap has the longest lead — roughly eight to ten tapered threads. That gradual taper is the easiest of the three to start straight by hand, since it self-aligns before cutting a full thread. It's the natural choice for through-holes, where the tap exits the far side and there's no floor to cut down to.

Plug Tap

The plug tap shortens that lead to roughly three to five tapered threads — enough to start well, but reaching full depth sooner. It's the general-purpose tap, the one that stays in the wrench for most ordinary work, with taper and bottoming reserved for jobs that specifically call for them.

Bottoming Tap

The bottoming tap has almost no lead — as little as one to one-and-a-half tapered threads — so it reaches full depth within a turn or two. It's built for blind holes, where the thread must run nearly to the floor, and it's normally run in only after a taper or plug tap has already cut the bulk of the thread; started cold, it has very little to guide it straight.

Drill First: Getting the Tap-Drill Size Right

Reading a Tap-Drill Chart

Before a tap ever touches a workpiece, the hole must be drilled to the correct tap-drill size — a diameter close to the thread's minor diameter, engaging roughly 75% of full thread depth. This is not a step to eyeball. Too large, and the tap cuts a shallow, weak thread that strips under load. Too small, and the flutes pack with metal, the tap binds, and a hardened, brittle tool simply snaps. A tap broken off flush inside a hole is one of the more miserable repairs in a shop, which is why the tap-drill chart earns its place taped inside every serious toolbox lid. Our guide to antique measuring and marking tools covers the gauges that made this precision possible long before digital calipers.

Two Worked Examples: 1/4"-20 UNC and M6×1.0

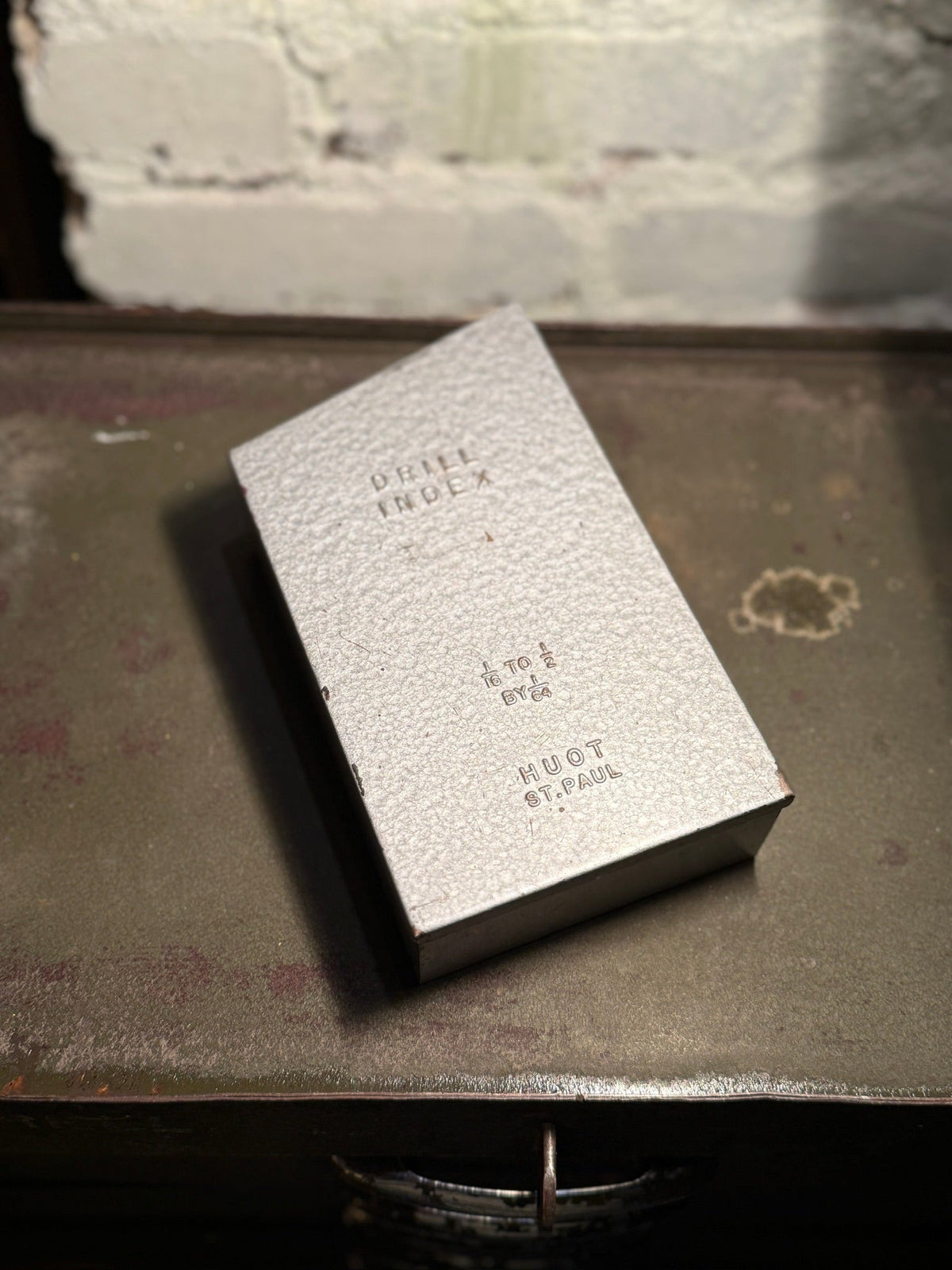

The charts do the arithmetic so nobody has to guess. For the common imperial fastener 1/4"-20 UNC — 1/4-inch major diameter, 20 threads per inch — the correct tap-drill size is a #7 drill bit, 0.201 inch. For the metric equivalent, M6×1.0 — 6mm major diameter, 1.0mm pitch — it's a 5.0mm drill bit. Both hold to the same 75%-engagement principle; the numbers simply differ because inch and metric threads are specified differently, which is exactly why a shop working in both systems keeps both a fractional/number index and a metric one, like the set pictured above.

Turning the Tool: Wrenches, Oil, and Technique

Tap Wrenches and Die Stocks

A tap is turned with a tap wrench — a small T-handled wrench, or a longer bar-style wrench for larger taps — giving the hand leverage to feel resistance without over-torquing a brittle tool. A die is turned with a die stock, a round frame with set screws and two handles for even rotation. Both exist for the same reason: steady, centered turning so the tool tracks straight rather than wandering mid-cut.

Cutting Oil, Half-Turns, and Breaking the Chip

On metal, cutting oil is not optional — it lubricates the cut, carries away heat, and clears shavings from the flutes; running a tap or die dry in steel is the fastest way to gall the threads or snap the tool. The technique is simple and centuries-old: turn forward about a half to one full turn, then back off roughly a quarter turn before continuing. That reversal breaks the long, stringy chip rather than letting it jam the flutes. The tool must stay square to the work and should never be forced — taps are hardened and brittle, so force past real resistance snaps the tool rather than bending it, and a tap seized in a hole is a genuinely difficult extraction.

Thread Standards: UNC, UNF, and Metric

Every tap and die is cut to a specific thread standard, described by pitch — how far the thread advances per turn. In the imperial system that's threads per inch (TPI), and the two families most common in American shop work are UNC (Unified National Coarse) and UNF (Unified National Fine): coarse threads cut deeper and resist stripping in softer materials, fine threads hold better under vibration. The metric system describes pitch in millimeters between threads rather than a per-inch count, but the logic is identical — a tap and die of the same standard, size, and pitch always mate, and one from a different standard won't, even when the two look deceptively close by eye.

The Vintage Angle: Old Sets, and the Whitworth Gotcha

Collecting Vintage Tap and Die Sets

American makers like Greenfield Tap & Die (GTD) and Sears' Craftsman line produced enormous numbers of high-quality tap-and-die sets across the mid-20th century, and their vintage tools remain genuinely useful, not just decorative. Old tool steel, properly hardened and tempered by makers who staked their name on it, holds an edge as well as most of what's sold new — a point our guide to why old American tool steel outperforms new makes in more detail. A complete vintage set in its original fitted case, still sharp and unpitted, is a genuinely functional shop tool; a set with rust or chips is a restoration project first — our guide to removing rust without destroying value covers bringing one back without grinding away the edges that make it worth having.

When a Modern Tap Won't Fit: Whitworth on Antique British Machinery

Here is where a restorer can lose an afternoon before realizing the problem isn't the tap. Antique British machinery — Victorian and Edwardian lathes and hardware especially — was very often built to British Standard Whitworth (BSW) and its finer counterpart British Standard Fine (BSF), standards dating to Joseph Whitworth's 1841 proposal, the world's first national screw thread standard. Whitworth threads use a 55-degree angle with rounded crests, distinct from the 60-degree, flat-crested profile of modern UNC, UNF, and metric threads. A modern tap will often start into a Whitworth-tapped hole and feel almost right before it binds or ruins the original thread. BSW and BSF were largely superseded by metric standards in Britain decades ago, but they persist exactly where it matters most — in the machinery restorers work with today. Confirm the original standard before tapping anything on genuinely antique British equipment.

At a Glance

• A tap cuts internal threads; a die cuts external threads.
• Taper (~8–10 tapered threads), plug (~3–5), and bottoming (~1–1.5) move from easiest-to-start toward full depth in a blind hole.
• Drill the correct tap-drill size first: #7 (0.201") for 1/4"-20 UNC, 5.0mm for M6×1.0.
• Use cutting oil on metal; turn forward a half to one turn, then back off a quarter turn to break the chip.
• UNC, UNF, and metric threads are described by TPI or pitch and aren't interchangeable between systems.
• Antique British machinery often uses obsolete Whitworth (BSW/BSF) threads a modern UNC tap won't match.

Frequently Asked Questions

What is the difference between a tap and a die?

A tap cuts internal threads inside a pre-drilled hole. A die cuts external threads onto a rod or bolt blank. They're typically sold together because a single job, such as fitting a new bolt to an old casting, often calls for both.

Why do I need three different taps for one thread size?

Taper, plug, and bottoming taps differ in how many tapered threads lead into the tip. The taper tap starts easiest and suits through-holes; the plug tap is the general-purpose middle ground; the bottoming tap cuts almost to the floor of a blind hole and is normally run in only after a taper or plug tap has started the thread.

What happens if I drill the wrong size hole before tapping?

Too large, and the tap cuts a shallow thread that strips easily. Too small, and there isn't enough clearance to cut cleanly — the flutes clog, the tap binds, and a hardened, brittle tap snaps rather than bends. A snapped tap lodged in a hole is a difficult repair, which is exactly why the tap-drill chart matters.

Can I use a modern tap on an old British machine?

Not safely, if the original threads are Whitworth (BSW) or British Standard Fine (BSF), the standard on British machinery well into the 20th century. Their 55-degree, rounded-crest profile differs from the 60-degree, flat-crested profile of modern threads, so a modern tap can bind or ruin the original. Confirm the standard before tapping anything on genuinely antique British equipment.

Conclusion

Taps and dies are unglamorous by design — small, hardened, and indifferent to whatever era surrounds them. That's why they matter to anyone restoring old machinery or hardware: the thread cut today has to match the thread cut a hundred years ago, by hand. Know the difference between internal and external cutting, respect the tap-drill chart, and recognize when you're not dealing with a modern thread standard at all — the rest is patience, oil, and a quarter-turn back.
